Enabling Agentic Workflows with Liveblocks

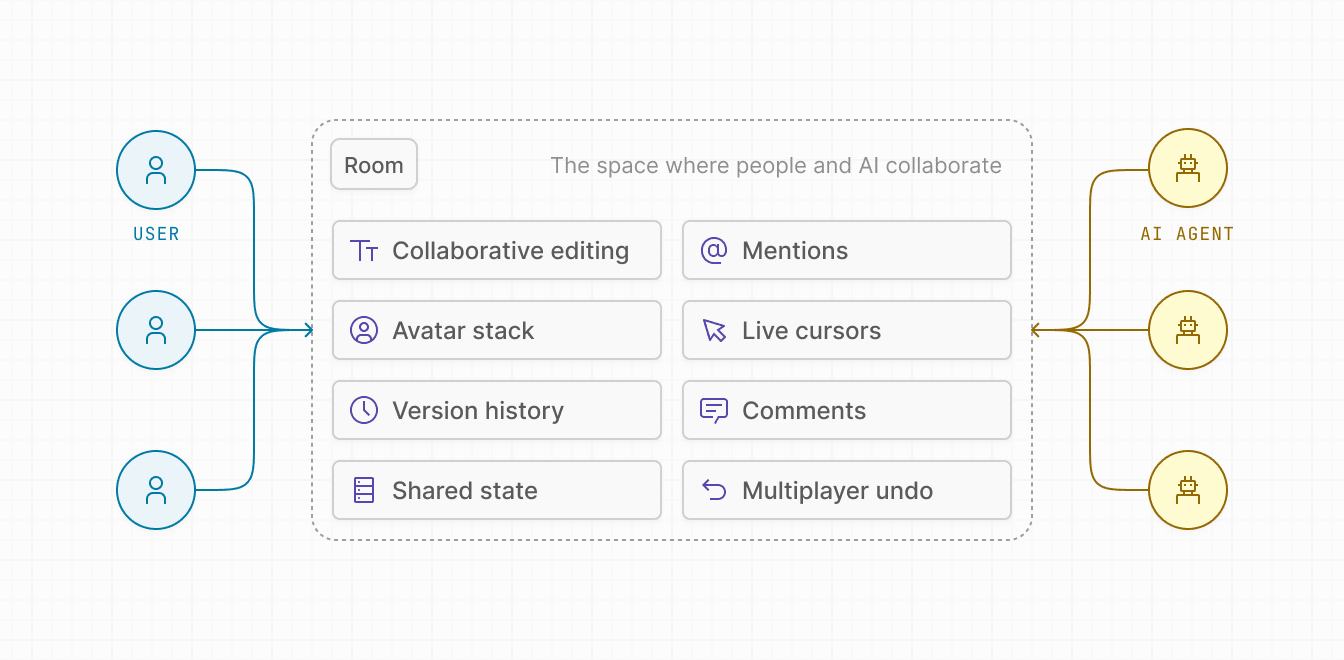

AI agents can participate as first-class collaborators inside Liveblocks rooms. Two REST API capabilities make this possible:

  • Ephemeral Presence (POST /v2/rooms/{roomId}/presence): Lets an agent appear in a room with a name, avatar, and custom presence data, with an auto-expiring TTL.
  • JSON Patch (PATCH /v2/rooms/{roomId}/storage/json-patch): Lets an agent modify Storage using the RFC 6902 standard, which is well understood by LLMs, making it straightforward for AI models to generate patch operations directly from natural language instructions.

Both are language-agnostic HTTP endpoints, so agents built in Python, TypeScript, or any other language can use them without a native Liveblocks client.

Making your agent visible with ephemeral presence

The POST /v2/rooms/{roomId}/presence endpoint lets your agent set presence in a room just like a connected user would. The presence expires automatically once the TTL elapses, so the agent never lingers after it's done.

Endpoint
POST https://api.liveblocks.io/v2/rooms/{roomId}/presence

Authenticate with your project's secret key in the Authorization header.

"Authorization: Bearer "

The request body accepts:

  • userId: The agent's stable identifier.
  • data: Any presence object you want connected clients to see.
  • userInfo: Optional name, avatar URL, and color for the agent.
  • ttl: How long (in seconds) the presence should live (minimum: 2, maximum: 3599).
$curl -X POST "https://api.liveblocks.io/v2/rooms/my-room/presence" \  -H "Authorization: Bearer " \  -H "Content-Type: application/json" \  -d '{    "userId": "ai-agent",    "data": { "status": "thinking", "focusedField": "email" },    "userInfo": {      "name": "AI Agent",      "avatar": "https://example.com/ai-agent-avatar.png",      "color": "#6366f1"    },    "ttl": 60  }'

A 204 response means the presence was set successfully.

Rendering the agent as an avatar

Because the agent's presence is set server-side, it flows to all connected clients through the normal Liveblocks presence system. The agent appears in useOthers alongside real users, so existing avatar stack components work without any changes.

import { useOthers, useSelf } from "@liveblocks/react/suspense";
function AvatarStack() {  const others = useOthers();  const self = useSelf();
  return (    <div className="avatar-stack">      {others.map(({ connectionId, info }) => (        <img key={connectionId} src={info.avatar} alt={info.name} />      ))}      {self && <img src={self.info.avatar} alt={self.info.name} />}    </div>  );}

The userInfo.avatar you pass to the presence endpoint populates info.avatar here, so the agent shows up with its own avatar.

Highlighting form fields

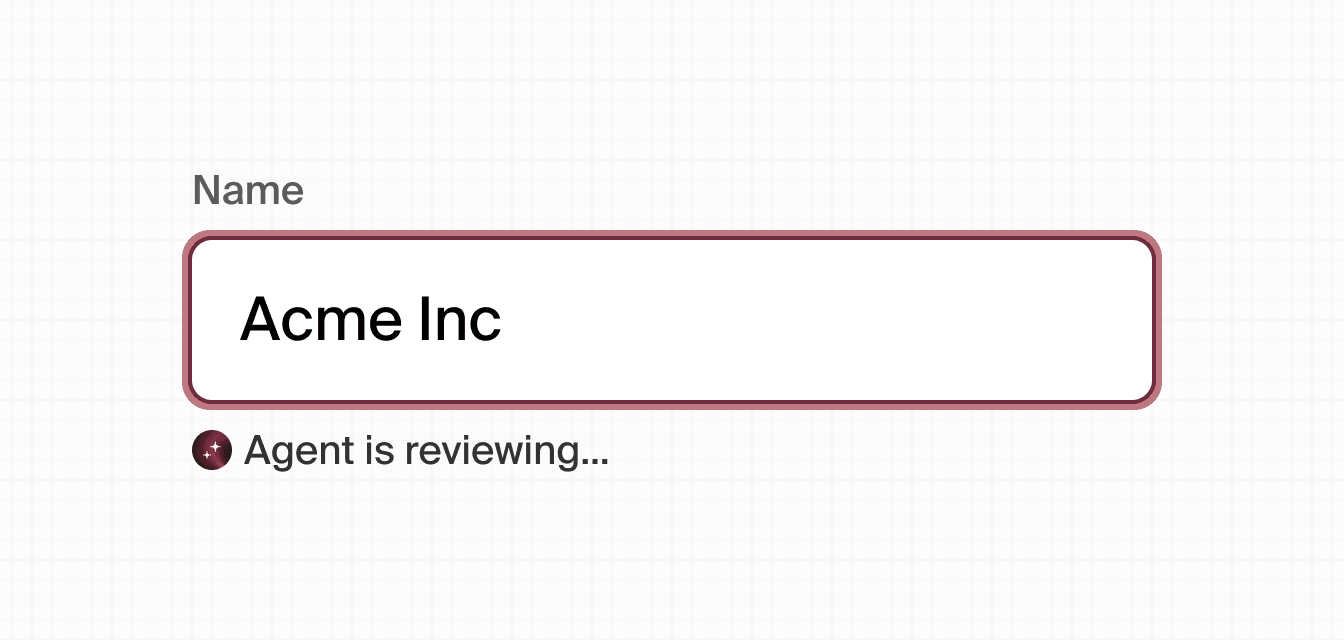

Presence data can carry any shape you choose. A focusedField property, for example, lets the frontend highlight which input the agent is currently working on, giving users real-time insight into what the agent is doing.

import { useOthers } from "@liveblocks/react/suspense";
function FormField({ name, label }: { name: string; label: string }) {  const agentFocus = useOthers((others) =>    others.find((o) => o.presence.focusedField === name)  );
  return (    <div className={agentFocus ? "ring-2 ring-indigo-500" : ""}>      <label htmlFor={name}>{label}</label>      <input id={name} name={name} />      {agentFocus && (        <span className="text-sm text-indigo-600">          {agentFocus.info.name} is reviewing…        </span>      )}    </div>  );}

As the agent moves between fields, call the presence endpoint again with an updated focusedField value. Each call resets the TTL, so the presence stays alive as long as the agent keeps working.

Modifying storage with JSON Patch

The PATCH /v2/rooms/{roomId}/storage/json-patch endpoint lets an agent write directly to a room's Storage document over HTTP. The body is a JSON array of operations following the RFC 6902 specification.

Endpoint
PATCH https://api.liveblocks.io/v2/rooms/{roomId}/storage/json-patch

JSON Patch is a well-established standard that LLMs already understand, which means you can ask a model to produce the patch operations directly from a natural language instruction without writing custom tooling or prompt engineering.

Supported operations are add, remove, replace, move, copy, and test. If any operation fails, the whole patch is rejected and the document is left unchanged.

For a full reference of all operations and error handling, see the Modifying Storage via REST API with JSON Patch guide.

The example below uses Python, which is common in agentic pipelines:

import requests
ROOM_ID = "my-room"SECRET_KEY = "sk_prod_..."
operations = [    {"op": "replace", "path": "/formData/email", "value": "verified@example.com"},    {"op": "add",     "path": "/formData/status", "value": "reviewed"},]
response = requests.patch(    f"https://api.liveblocks.io/v2/rooms/{ROOM_ID}/storage/json-patch",    json=operations,    headers={"Authorization": f"Bearer {SECRET_KEY}"},)
response.raise_for_status()  # raises on 4xx / 5xx

A 200 response means all operations were applied. A 422 response means the patch failed; the response body includes an error code, a human-readable message, and an optional suggestion.

End-to-end example: agent reviews a form

The following example walks through an agent that reviews a multi-field form. It uses ephemeral presence to show users what it's doing in real time, and JSON Patch to commit its changes to Storage.

import requests
BASE = "https://api.liveblocks.io/v2"ROOM  = "my-room"AGENT_ID = "ai-agent"HEADERS  = {"Authorization": "Bearer sk_prod_...", "Content-Type": "application/json"}
def set_presence(focused_field: str, status: str, ttl: int = 30):    requests.post(        f"{BASE}/rooms/{ROOM}/presence",        json={            "userId": AGENT_ID,            "data": {"focusedField": focused_field, "status": status},            "userInfo": {                "name": "AI Agent",                "avatar": "https://example.com/ai-agent-avatar.png",            },            "ttl": ttl,        },        headers=HEADERS,    )
def patch_storage(ops: list):    requests.patch(        f"{BASE}/rooms/{ROOM}/storage/json-patch",        json=ops,        headers=HEADERS,    ).raise_for_status()
# Step 1 — signal intent on the "email" fieldset_presence("email", "reviewing")
# Step 2 — validate and update email in Storagepatch_storage([    {"op": "replace", "path": "/formData/email", "value": "verified@example.com"},])
# Step 3 — move to the "name" fieldset_presence("name", "reviewing")
patch_storage([    {"op": "replace", "path": "/formData/name", "value": "Jane Doe"},])
# Step 4 — mark the review as complete# Set a short TTL so presence expires soon after we're doneset_presence("", "done", ttl=5)patch_storage([    {"op": "add", "path": "/formData/reviewedAt", "value": "2026-02-20T12:00:00Z"},    {"op": "add", "path": "/formData/reviewedBy", "value": AGENT_ID},])

On the frontend, the FormField component from the section above will highlight each field as the agent focuses on it, and useStorage will reflect the patched values as they arrive in real time, no extra wiring required.

Triggering agentic workflows

There are several natural places to start an agent workflow. Choose the one that fits your product best, or combine multiple triggers.

Comments webhooks—mentioning an AI agent

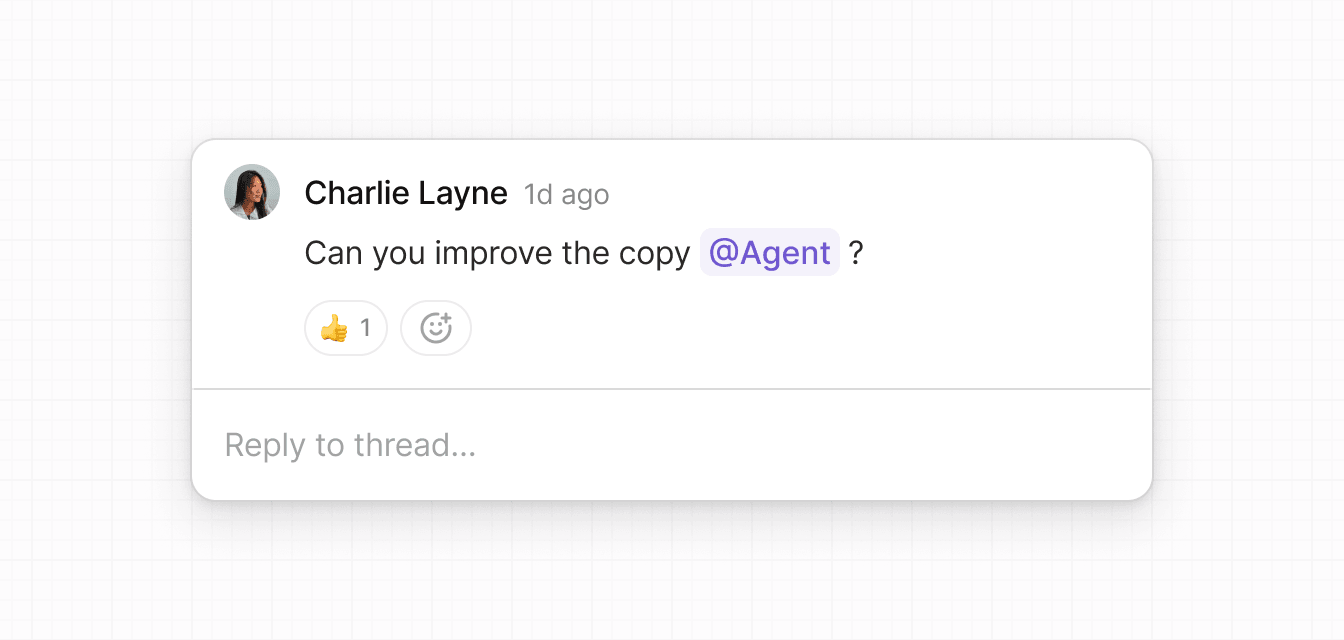

Users can invoke an agent by mentioning it in a comment (e.g. @AI Agent, please review this form). The commentCreated webhook fires for every new comment, giving you a place to detect the mention and dispatch the agent.

  1. Register the agent as a mentionable user

    Add the agent's ID to resolveUsers and resolveMentionSuggestions in your LiveblocksProvider so it appears in the @ mention picker alongside real users.

    <LiveblocksProvider  authEndpoint="/api/liveblocks-auth"  resolveUsers={async ({ userIds }) => {    const users = await fetchUsersFromDB(userIds);    return userIds.map((id) => {      if (id === "ai-agent") {        return { name: "AI Agent", avatar: "/ai-agent-avatar.png" };      }      return users.find((u) => u.id === id);    });  }}  resolveMentionSuggestions={async ({ text }) => {    const userIds = await searchUsers(text);    // Include the AI agent whenever "ai agent" matches the search text    if ("ai agent".includes(text.toLowerCase())) {      userIds.unshift("ai-agent");    }    return userIds;  }}>  {/* ... */}</LiveblocksProvider>

    For more information on resolveUsers and resolveMentionSuggestions, see Users and mentions.

  2. Handle the commentCreated webhook

    When a comment is created, the webhook payload contains roomId, threadId, and commentId. Fetch the full comment using the Liveblocks Node SDK, then use getMentionsFromCommentBody to extract all mentions and check whether the agent's ID is among them.

    app/api/liveblocks-webhook/route.ts
    import { Liveblocks, getMentionsFromCommentBody } from "@liveblocks/node";
    const liveblocks = new Liveblocks({ secret: process.env.SECRET_KEY! });
    export async function POST(req: Request) {  const event = await req.json();
      if (event.type === "commentCreated") {    const { roomId, threadId, commentId } = event.data;
        // Fetch the full comment to inspect its body    const comment = await liveblocks.getComment({      roomId,      threadId,      commentId,    });
        // Extract all mentions from the comment body    const mentions = getMentionsFromCommentBody(comment.body);    const mentionsAgent = mentions.some(      (mention) => mention.kind === "user" && mention.id === "ai-agent"    );
        if (mentionsAgent) {      // Trigger your agent workflow with the relevant context      await triggerAgentWorkflow({ roomId, threadId, commentId });    }  }
      return new Response(null, { status: 200 });}

    triggerAgentWorkflow is where you kick off your agent — call an n8n webhook, invoke a CrewAI crew, hit an LLM API, or run any other pipeline you've built.

    Securing webhooks

    Always verify the webhook signature before processing events. See the Webhooks documentation for verification examples.

Storage webhooks

The storageUpdated event fires whenever Storage is written to. This is useful for agents that react to user edits, for example auto-validation, auto-summarization, or data enrichment.

app/api/liveblocks-webhook/route.ts
export async function POST(req: Request) {  const event = await req.json();
  if (event.type === "storageUpdated") {    const { roomId } = event.data;    await triggerAgentWorkflow({ roomId });  }
  return new Response(null, { status: 200 });}

Direct API call or button

The simplest trigger of all: a user clicks a button in your UI, which calls your backend endpoint, which runs the agent. This gives you full control over when and how the agent is invoked.

async function handleReviewClick() {  await fetch("/api/run-agent", {    method: "POST",    body: JSON.stringify({ roomId: "my-room" }),  });}

A scheduled job (CRON) is another variant which can run the agent periodically to batch process rooms or perform maintenance tasks.

Other triggers

  • Notification webhooks: Fire when a user receives an inbox notification, which can be a signal to summarize unread activity or draft a reply.
  • External events: Slack messages, GitHub PR events, email, Zapier triggers, or any inbound webhook that carries a roomId can start an agent run.
  • Scheduled / CRON jobs: Poll rooms on a fixed schedule to run quality checks, generate reports, or clean up stale data.

Integrating with agentic frameworks

Because both APIs are plain HTTP endpoints, Liveblocks works with any agent framework that can make HTTP requests.

  • n8n: Add an HTTP Request node to call the presence and JSON Patch endpoints. Use a Liveblocks webhook as the workflow trigger so agents fire automatically on comment or storage events.
  • CrewAI :Wrap the REST calls in a custom Tool and pass it to your agents. Agents can then set presence or patch storage as part of a multi-step task.
  • LangChain / LangGraph: Define Liveblocks tools for function-calling models. The LLM can generate JSON Patch operations directly — the RFC 6902 format is part of many models' training data, so no custom schema or special prompting is needed.
  • Any HTTP-capable framework: fetch, axios, Python requests, Go net/http, cURL—if it can make a POST or PATCH request it can drive Liveblocks.
