Introducing Zen Router: our open-source type-safe router compatible with Cloudflare Workers

We’ve open sourced Zen Router: an opinionated HTTP router with typed path params, built-in body validation, and a clean model for auth. Here’s why we built it and what makes it different.

on February 26th

Today we’re open sourcing Zen Router, an opinionated HTTP router powering Liveblocks over the past two years, handling billions of requests per month. It features typed path params, built-in body validation, and a clean model for auth. Zen Router is useful in any project that needs an HTTP router, and is compatible with Cloudflare Workers, Bun, Node.js, and every other modern JavaScript runtime.

This release marks the second stage of our effort to make the Liveblocks stack available to everyone, which began last week with our sync engine and dev server, and continues today with Zen Router.

Why we built our own router

The Liveblocks back end runs on Cloudflare Workers, a runtime where bundle size really matters. Ever since Liveblocks started, we’ve relied on itty-router, the stock Cloudflare recommendation for Workers. It’s marketed as “an ultra-tiny API microrouter”, and that’s exactly what it is. It’s good at routing, but being so small, it comes without any other functionality. Body validation, route param URI decoding, auth, error handling, and CORS are entirely your responsibility.

itty-router is honest about being a minimal primitive, but each missing feature meant we had to build our own, or use a middleware library for it. Over time, these middlewares started to pile up, and middleware ordering became a nightmare.

Ironically, our feature-complete router library produced a smaller bundle size than itty-router combined with our middleware stack.

Composing routers

A typical back end serves endpoints to different audiences, each with its own auth requirements: your main API might need token auth, admin routes require stricter access control, webhook receivers verify request signatures, and some routes like login need no auth at all.

We typically want to group routes with the same auth requirements together. And this is at the heart of Zen Router’s design: each such group is a ZenRouter instance.

At the outermost layer, we use ZenRelay to bind them all together. This is just a thin dispatch layer that looks at an incoming request, selects which router gets to handle it purely based on the prefix, and dispatches it.

import { ZenRelay } from "@liveblocks/zenrouter";
import { zen as authRoutes } from "./routes/auth";import { zen as apiRoutes } from "./routes/api";import { zen as adminRoutes } from "./routes/admin";import { zen as webhookRoutes } from "./routes/webhooks";
// At the top level, Zen Relay "just" relays incoming requests to// different Zen Router instances, purely based on URL prefixconst app = new ZenRelay();app.relay("/auth/*", authRoutes); // No auth (public)app.relay("/api/admin/*", adminRoutes); // Uses private authapp.relay("/api/*", apiRoutes); // Uses Bearer token auth, requires CORSapp.relay("/webhooks/*", webhookRoutes); // Uses signature verification
// Now just call app.fetch(request) in your runtime’s request handler,// and it will do the restexport default app;

There is no fall-through here like you sometimes see in other routers. For example, if an incoming request is for /api/admin/users/123 then only the admin router /api/admin/* will handle it. If that router doesn’t have a matching route, it will result in a 404 response. The /api/* router will deliberately not get a chance to handle it. This is because each router has its own auth requirements, so it’s important that routers are fully isolated from each other.

The use of ZenRelay is optional. If your back end only needs one ZenRouter instance, you don’t need ZenRelay at all and you can use that ZenRouter instance directly.

What a route handler looks like

This is what a route inside apiRoutes from the example above might look like:

export const zen = new ZenRouter({  /* config */});
// e.g. PATCH https://example.com/api/users/abc123?notify=truezen.route(  "PATCH /api/users/<userId>",
  // Validates input body  z.object({ name: z.string() }),
  // Handler  async ({ req, ctx, auth, body, p, q }) => {    //    // req  = original, unmodified Request    // ctx  = value returned by your getContext    // auth = value returned by your authorize (typically the current user)    // body = validated request input body, eg { name: "Alicia" }    // p    = path params object, eg { userId: "abc123" }    // q    = query string params object, eg { notify: "true" }    //  });

The rest of this post breaks down each of these pieces.

Defining a router

Each router has a set of routes, and two important hooks: getContext and authorize. The return values of these functions become available in the handler.

export const zen = new ZenRouter({  // Optional context is any metadata you want to attach to an incoming request  getContext: (req) => ({ foo: "bar" }),
  // Authorization is mandatory  authorize: async ({ req }) => {    const token = req.headers.get("Authorization");    const user = await db.getUserByToken(token);    if (!user) return false; // → 403 Forbidden
    // Return any truthy value to allow    // For example, the full authorized user object    return { currentUser: user };  },});
zen.route("GET /api/users/me", ({ ctx, auth }) => {  return {    id: auth.currentUser.id,    name: auth.currentUser.name,    metadata: ctx.foo,  };});
zen.route("GET /api/users/<userId>", async ({ p }) => {  const user = await db.getUserById(p.userId);  return {    id: user.id,    name: user.name,  };});

Authorization is mandatory. Every router must provide an authorize function that will be evaluated before any route handler runs. Return a falsy value or throw to reject the request with a 403 response. Return any truthy value to allow the request, and that value becomes available as auth in the handler.

Providing getContext is optional. You can return any value from it, and it will be made available to handlers as ctx. This is a great place to pass down database connections or structured loggers.

Path params are typed automatically. A route pattern like GET /api/users/<userId> makes p.userId available as a typed string in the handler, inferred from the pattern at compile time. No extra type declarations needed. You can also register custom param schemas at the router level to transform params to other types or restrict their allowed values.

Body validation

Routes that accept a request body must declare a validator as their second argument. The body is validated before your code executes, so body is already parsed and fully typed.

import { z } from "zod";
zen.route(  "PATCH /api/users/me",
  // Expected incoming request body shape  z.object({ name: z.string() }),
  async ({ auth, body }) => {    await db.updateUser(auth.currentUser.id, {      name: body.name,    });    return { ok: true };  });

If the body doesn’t match the schema, Zen Router returns an HTTP 422 Unprocessable Entity response with a human-readable error message.

At Liveblocks, we use decoders for validation because it’s more lightweight and produces more beautiful error messages than Zod. However, Zen Router supports any validation library that implements the Standard Schema spec.

What else is built in

CORS

CORS support is a first-class feature. Passing { cors: true } to the router enables it across all routes, and Zen Router will correctly handle all OPTIONS preflight requests automatically. For more control, pass a configuration object instead to set allowed origins, credentials, exposed headers, and more. Either way, CORS is per-router, not per-route, which matches how you’d almost always want it. In our case, only the main API router needs CORS since it’s the only one browsers talk to directly.

Error handling

From inside any handler, you can short-circuit with an error response:

import { abort } from "@liveblocks/zenrouter";
// Returns { "error": "Not Found" } with status 404abort(404);

The error shape that abort() produces can be customized centrally at the router level with onError and onUncaughtError hooks, so individual handlers don’t need to worry about it.

Response helpers

Handlers can return a plain object and Zen Router will serialize it as JSON automatically. For other response types, a set of helpers is included:

json(value, status?, headers?): JSON response with correct content type
html(content, status?, headers?): HTML response
textStream(iterable): Streaming text response from a string generator

OpenTelemetry support

Zen Router supports OpenTelemetry. Use your favorite OpenTelemetry package, then tell Zen Router how to get the current span, and Zen Router will automatically set the matched route pattern and path params as span attributes. This means you get per-route observability for free with a single config option.

Request lifecycle

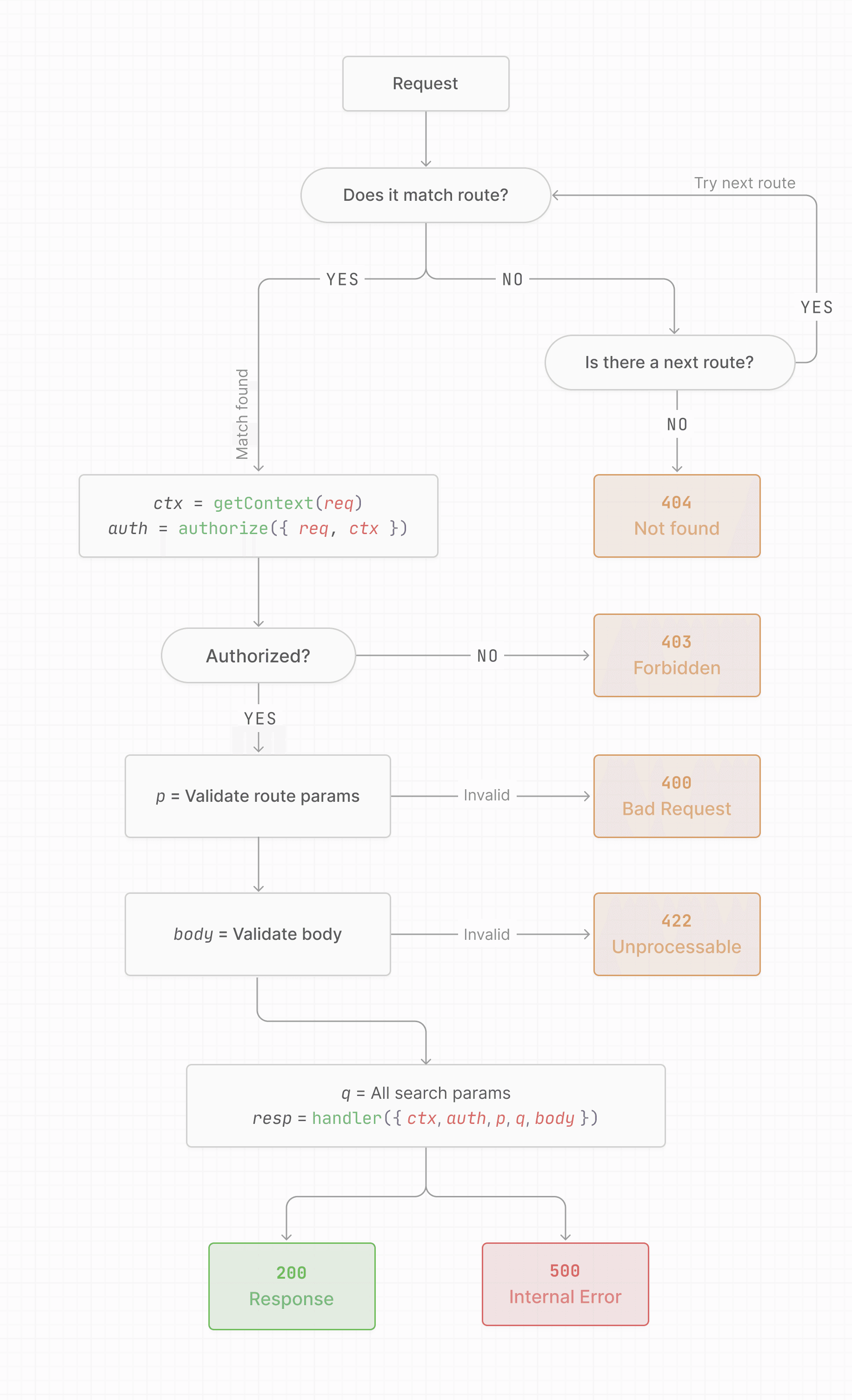

Here’s the full picture of how an incoming request is processed by Zen Router:

Unconventional design choices

Zen Router was founded on the principles laid out in its documentation, optimized for type-safety, long-term maintainability, and joy to use. Zen Router values explicitness over implicitness, always, everywhere.

Some of these principles may feel unconventional at first, but they have really made endpoint development a joy to us.

Auth is mandatory. For public routes, explicitly opt out.
All route paths are fully qualified and greppable. No prefix-based sub-routers. A grep for /api/users returns every route that touches that path, unambiguously.
All route paths include the HTTP method. The method and path are a single string, which lets the router automatically return 405 Method Not Allowed when a URL matches but the method doesn’t.
No middlewares. Auth and context are the only hooks. No middleware ordering, no implicit state.
No request monkey patching, ever. Metadata, the current user, validated bodies, route params, and query params are passed alongside the original request, not attached to it.
No fall-through between routers. Each relay prefix maps to exactly one router.
CORS is built-in, not bolted on as a middleware.
Throwing is first-class flow control. Call abort() to short-circuit the handler and return an error response.

Get Started

Install the package now to get started.

Terminal

$npm install @liveblocks/zenrouter

Documentation

Our new website covers the full API including context setup, auth functions, custom error handling, and how to wire the router into different runtimes

Zen Router Documentation

Feedback

We’d love your feedback—open an issue, start a discussion on GitHub, or reach out to us on Discord or X.
