How to synchronize your Liveblocks Storage document data to a Supabase Postgres database

Liveblocks allows you to build collaborative applications with Storage, a persisted conflict-free data store. Using our webhooks and REST API, you can then retrieve the Storage document data as it changes, and store it in your database.

What we’re building

In this guide we’ll be linking a Storage application up to a Supabase Postgres database so that Storage document data is automatically synchronized. This is enabled through the following:

• StorageUpdated webhook event
• Get Storage Document REST API

This specific webhook is throttled

Note that the StorageUpdated webhook event is throttled at a rate of once every 5 seconds. This is because Storage can update up to 60 times per second, and it would be impractical to run the webhook this frequently.

Create an endpoint in your project

When a webhook event is triggered, it can send a POST request to the back end in your project, and from within there we can update the database. In this guide, we’ll be using a Next.js route handler (API endpoint) as an example, but other frameworks work similarly.

In order to use webhooks, we’ll need to retrieve the headers and body from the request. Here’s the basic endpoint we’ll be starting from:

export async function POST(request: Request) {  const body = await request.json();  const headers = request.headers;
  // Handle webhooks and database  // ...
  return new Response(null, { status: 200 });}

Create this endpoint in your project, and make it available on localhost at the following URL:

/api/liveblocks-database-sync

Testing webhooks locally

Running webhooks locally can be difficult, but one way to do this is to use a tool such as localtunnel or ngrok which allow you to temporarily put your localhost server online.

If your project is running on localhost:3000, you can run the following command to generate a temporary URL that’s available while your localhost server is running:

$npx localtunnel --port 3000

localtunnel generates a base URL that can be placed into the Liveblocks webhooks dashboard for quick testing. To use this, take the full address of your webhook endpoint, and replace the domain in your localhost address with the generated URL.

# Take your local URLhttp://localhost:3000/api/liveblocks-database-sync
# Replace localhost with the generated domain, then copy ithttps://my-localtunnel-url.loca.lt/api/liveblocks-database-sync

You now have a URL that can be used in the webhooks dashboard.

Set up webhooks on the Liveblocks dashboard

To use webhooks, you need to pass your endpoint URL to the webhooks dashboard inside your Liveblocks project, and tell the webhook to trigger when Storage document data has changed.

1. Select your project

   From the Liveblocks dashboard, navigate to the project you’d like to use with webhooks, or create a new project.



2. Go to the webhooks dashboard

   Click on the “Webhooks” tab on the menu at the left.



3. Create an endpoint

   Click the “Create endpoint…” button on the webhooks dashboard to start setting up your webhook.



4. Add your endpoint URL

   Enter the URL of the endpoint. In a production app this will be the real endpoint, but for now enter your localtunnel URL from earlier.



5. Get your secret key

   Click “Create endpoint” at the bottom, then find your “Webhook secret key” on the next page, and copy it.



6. Webhooks dashboard is set up!

   Note that you can filter specifically for storageUpdated events, but we’re ignoring this for now so we can test more easily. Let’s go back to the code.

Verify the webhook request

The @liveblocks/node package provides you with a function that verifies whether the current request is a real webhook request from Liveblocks. You can set this up by setting up a WebhookHandler and running verifyRequest.

Make sure to add your “Signing Secret” from the Liveblocks dashboard—in a real project we’d recommend using an environment variable for this.

import { WebhookHandler } from "@liveblocks/node";
// Add your signing key from a project's webhooks dashboardconst WEBHOOK_SECRET = "YOUR_SIGNING_SECRET";const webhookHandler = new WebhookHandler(WEBHOOK_SECRET);
export async function POST(request: Request) {  const body = await request.json();  const headers = request.headers;
  // Verify if this is a real webhook request  let event;  try {    event = webhookHandler.verifyRequest({      headers: headers,      rawBody: JSON.stringify(body),    });  } catch (err) {    console.error(err);    return new Response("Could not verify webhook call", { status: 400 });  }
  // Update database  // ...
  return new Response(null, { status: 200 });}

We can then check we’re receiving the correct type of event, get the updated roomId, and handle updating the database inside there.

import { WebhookHandler } from "@liveblocks/node";
// Add your signing key from a project's webhooks dashboardconst WEBHOOK_SECRET = "YOUR_SIGNING_SECRET";const webhookHandler = new WebhookHandler(WEBHOOK_SECRET);
export async function POST(request: Request) {  const body = await request.json();  const headers = request.headers;
  // Verify if this is a real webhook request  let event;  try {    event = webhookHandler.verifyRequest({      headers: headers,      rawBody: JSON.stringify(body),    });  } catch (err) {    console.error(err);    return new Response("Could not verify webhook call", { status: 400 });  }
  // When Storage document data has been updated  if (event.type === "storageUpdated") {    const { roomId } = event.data;
    // Update database    // ...  }
  return new Response(null, { status: 200 });}

Get the current room’s Storage document data

Before updating our database, we need to get the current room’s data. We can do this through the Get Storage Document REST API. You use the REST API, you need to add your secret key from your project page.

import { WebhookHandler } from "@liveblocks/node";
// Add your signing key from a project's webhooks dashboardconst WEBHOOK_SECRET = "YOUR_SIGNING_SECRET";const webhookHandler = new WebhookHandler(WEBHOOK_SECRET);
// Add your secret key from a project's API keys dashboardconst API_SECRET = "sk_prod_xxxx…xxxxxxsk_prod_xxxxxxxxxxxxxxxxxxxxxxxx";
export async function POST(request: Request) {  const body = await request.json();  const headers = request.headers;
  // Verify if this is a real webhook request  let event;  try {    event = webhookHandler.verifyRequest({      headers: headers,      rawBody: JSON.stringify(body),    });  } catch (err) {    console.error(err);    return new Response("Could not verify webhook call", { status: 400 });  }
  // When Storage document data has been updated  if (event.type === "storageUpdated") {    const { roomId } = event.data;
    // Get Storage data from Liveblocks REST API    const url = `https://api.liveblocks.io/v2/rooms/${roomId}/storage`;    const response = await fetch(url, {      headers: { Authorization: `Bearer ${API_SECRET}` },    });
    if (!response.ok) {      return new Response("Problem accessing Liveblocks REST APIs", {        status: 500,      });    }
    // Your JSON Storage document data as a string    const storageData = await response.text();
    // Update database    // ...  }
  return new Response(null, { status: 200 });}

Create a Supabase Postgres database

We’re ready to set up our Supabase database! We’ll be creating a simple documents table that contains the following fields:

1. New project

   Navigate to Supabase’s dashboard page, and click “New project” at the top.



2. Create a database

   Give your database a name and password, then click “Create new project” at the bottom. Make sure to save your password, because you won’t be able to view it again.



3. Create your table

   Click the SQL Editor icon in the left bar, enter the following code into the console, and click “Run” at the bottom right to create the table. sql CREATE TABLE documents ( roomId VARCHAR(255) PRIMARY KEY, storageData TEXT NOT NULL );

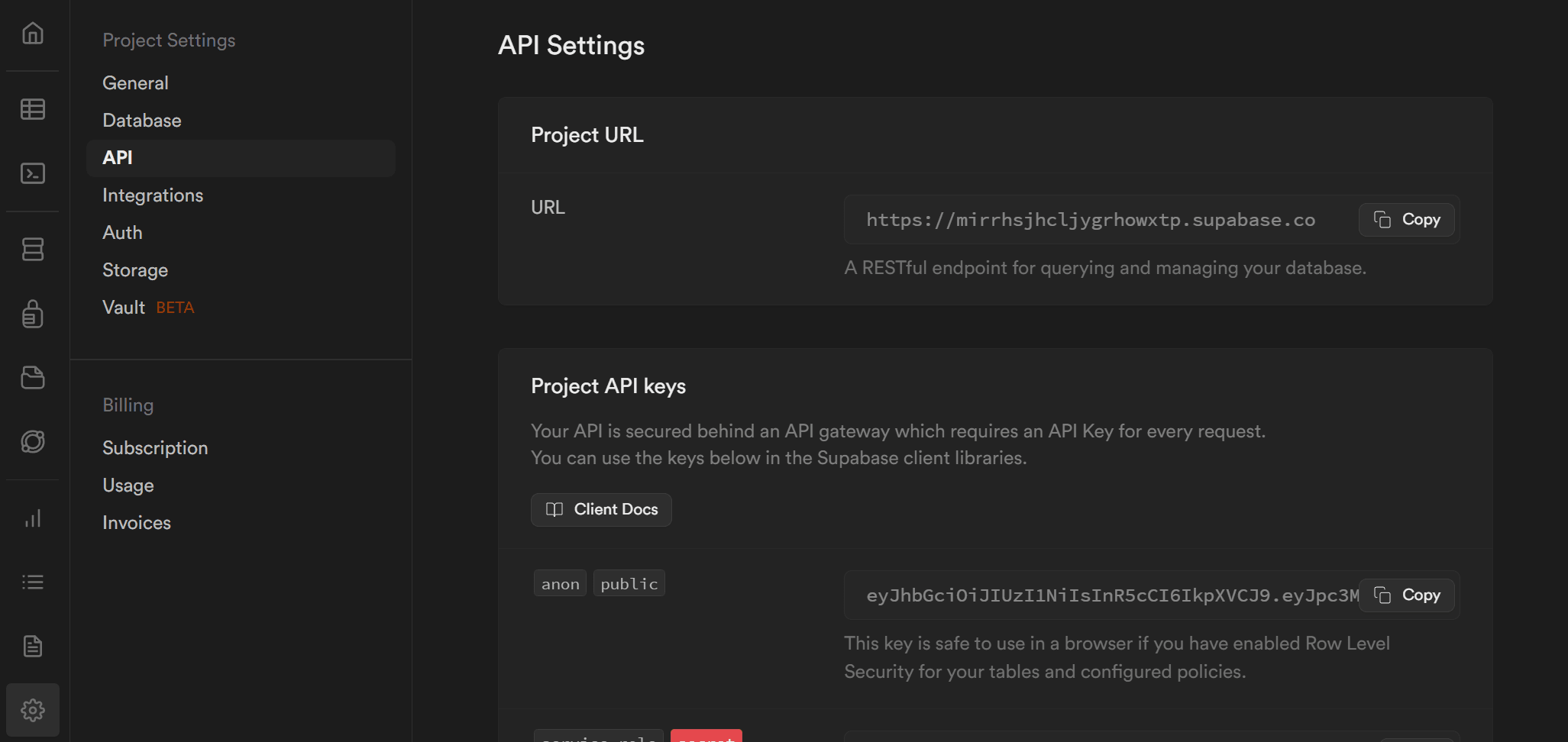

4. Get your credentials

   Click the Settings icon in the left bar, click “API” at the left and find two items: 1. Your “URL”, under “Project URL”. 2. Your anon``public key, under “Project API key”. Make a note of these, or add them as environment variables in your project.



5. Database ready!

   Let’s take a look at the code.

Add the Storage data to your database

And finally, we can add the Storage JSON data to our database! First, we need to install the Supabase library:

$npm i @supabase/supabase-js

Then implement the following to synchronize your data, making sure to add your Project URL:

import { WebhookHandler } from "@liveblocks/node";import { createClient } from "@supabase/supabase-js";
// Add your signing key from a project's webhooks dashboardconst WEBHOOK_SECRET = "YOUR_SIGNING_SECRET";const webhookHandler = new WebhookHandler(WEBHOOK_SECRET);
// Add your secret key from a project's API keys dashboardconst API_SECRET = "sk_prod_xxxx…xxxxxxsk_prod_xxxxxxxxxxxxxxxxxxxxxxxx";
// Create a Supabase clientconst supabase = createClient(  "YOUR_SUPABASE_PROJECT_URL",  "YOUR_SUPABASE_PUBLIC_ANON_KEY");
export async function POST(request: Request) {  const body = await request.json();  const headers = request.headers;
  // Verify if this is a real webhook request  let event;  try {    event = webhookHandler.verifyRequest({      headers: headers,      rawBody: JSON.stringify(body),    });  } catch (err) {    console.error(err);    return new Response("Could not verify webhook call", { status: 400 });  }
  // When Storage document data has been updated  if (event.type === "storageUpdated") {    const { roomId } = event.data;
    // Get Storage data from Liveblocks REST API    const url = `https://api.liveblocks.io/v2/rooms/${roomId}/storage`;    const response = await fetch(url, {      headers: { Authorization: `Bearer ${API_SECRET}` },    });
    if (!response.ok) {      return new Response("Problem accessing Liveblocks REST APIs", {        status: 500,      });    }
    // Your JSON Storage document data as a string    const storageData = await response.text();
    // Update database    const { data, error } = await supabase      .from("documents")      .insert({ roomid: roomId, storagedata: storageData })      .select();
    if (error) {      return new Response("Problem inserting data into database", {        status: 500,      });    }  }
  return new Response(null, { status: 200 });}

Check if it worked

To check if it worked, you can replay an event from the Liveblocks dashboard, or just edit your document.

Next, go to Supabase, and click the Table Editor icon on the left bar. Find your documents table on the left, and check the entries. You should now see your Storage document—we’ve successfully set up data synchronization!

When a user edits Storage data in your app, this function will be called, and your database will be updated. You can rely on this to stay up to date, within the 5 second throttle limit.

Learn more

You can learn more about Liveblocks webhooks in our full webhooks guide. We also have an API reference for the Get Storage Document API.
